20Km EPON OLT PX20++ Gigabit SFP Module TX1490 RX1310nm

Product Categories
Shenzhen linkopto Technology Co. Ltd
Contact Now

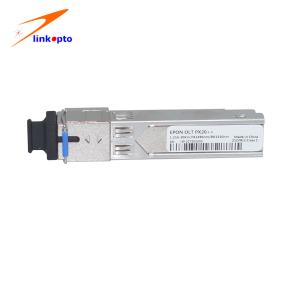

20Km EPON OLT PX20++ Gigabit SFP Module TX1490 RX1310nm

Brand Name : Linkopto , or OEM

Model Number : Epon OLT PX20++ 1.25G 20KM TX1490nm/RX1310nm

Certification : CE, FCC, ROHS, TUV, ISO9001

Place of Origin : China

MOQ : 1pcs

Price : Get latest price

Payment Terms : T/T, WU, PayPal, Moneygram, L/C

Supply Ability : 20,000pcs per week

Delivery Time : 3~7 working days

Packaging Details : 10pcs/ plastic tray or individual

Model Name : Epon OLT PX20++ 1.25G 20KM TX1490nm/RX1310nm

Wavelength : TX1490nm/RX1310nm

Data Rate : 1.25G

Transmission Distance : 20KM

Connector Type : SC

DDM : with

Working Environment : Commercial 0~70℃

Compatibility : Cisco, HP, H3C, Alcatel-Lucent, MikroTik, Juniper, Huawei, ZTE, Zyxel, etc

Fiber Connector : SC

No. of Fiber : 2

Contact Now

EPON OLT PX20++ + Tx7 dB , Enhanced, 20km, Tx 1490nm 1.25G, Rx 1310nm 1.25G, SFP form-factor, SC/UPC

Features:

Single Fiber Transceiver with single mode SC connector

1310nm burst-mode 1.25Gbps transmitter with FP laser

1490nm continuous-mode 1.25Gbps receiver with PIN-TIA

Single 3.3V power supply

Reset burst-mode receiver design

Burst mode signal detect output which is LVTTL compatible.

Burst mode received signal strength indication (RSSI) output

20Km Reach 28dB link budget

Complies with ITU-T G984.2 Class B+

Digital diagnostic interface compliant with SFF-8472 Rev 9.4 ,

Complies with RoHS directive (2002/95/EC)

Applications:

Gigabit Ethernet Passive Optical Network (GEPON) ONU20Km EPON OLT PX20++ Gigabit SFP Module TX1490 RX1310nm

PON Series
Type Description
EPON OLT PX20+ EPON OLT PX20+, 20km, Tx 1490nm 1.25G, Rx 1310nm 1.25G, SFP form-factor, SC/UPC receptacle connector, Commercial temperature 0ºC ~ +70ºC
EPON OLT PX20++ EPON OLT PX20++ Enhanced, 20km, Tx 1490nm 1.25G, Rx 1310nm 1.25G, SFP form-factor, SC/UPC receptacle connector, Commercial temperature 7DB
GPON OLT B+ GPON OLT B+, 20km, TX 1490nm 2.488Gbps, RX 1310nm 1.244Gbps, SFP, BIDI SC/UPC Receptacle, Commercial Temperature
GPON OLT C+ GPON OLT C+, 20km, TX 1490nm 2.488Gbps, RX 1310nm 1.244Gbps, SFP, BIDI SC/UPC Receptacle, Commercial Temperature
GPON OLT C++ GPON OLT C++, 20km, TX 1490nm 2.488Gbps, RX 1310nm 1.244Gbps, SFP, BIDI SC/UPC Receptacle, Commercial Temperature
GPON OLT 7dBm GPON OLT C++ Enhanced, 20km, TX 1490nm 2.488Gbps, RX 1310nm 1.244Gbps, SFP+, BIDI SC/UPC Receptacle, Commercial Temperature
GPON ONU SFP GPON ONU SFP, G.984.5, 20km, Tx 1310nm 1.244G, Rx 1490nm 2.488G, SFP form-factor, SC/UPC receptacle connector, Industrial temperature, BEN low active
EPON ONU SFP EPON ONU SFP, G.984.2, 20km, Tx 1310nm 1.25G, Rx 1490nm 1.25G, SFP form-factor, SC/UPC receptacle connector, Commercial temperature
GPON ONU STICKER B+ SFP ONU SFP MAC/ Tx1310/Rx1490 DFB+APD 1.25G/2.5G

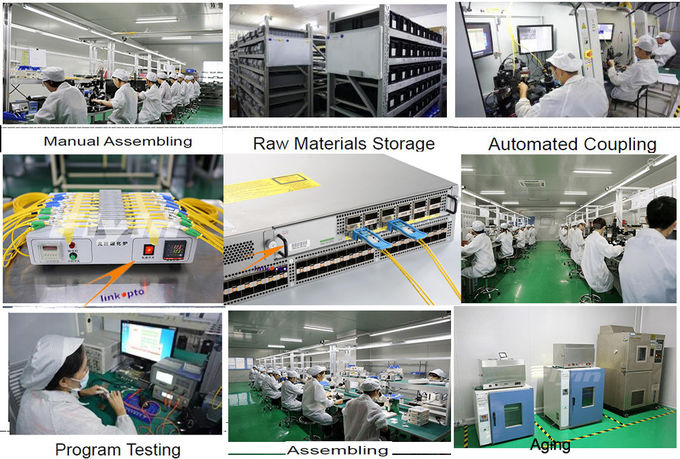

Quality Control

20Km EPON OLT PX20++ Gigabit SFP Module TX1490 RX1310nm

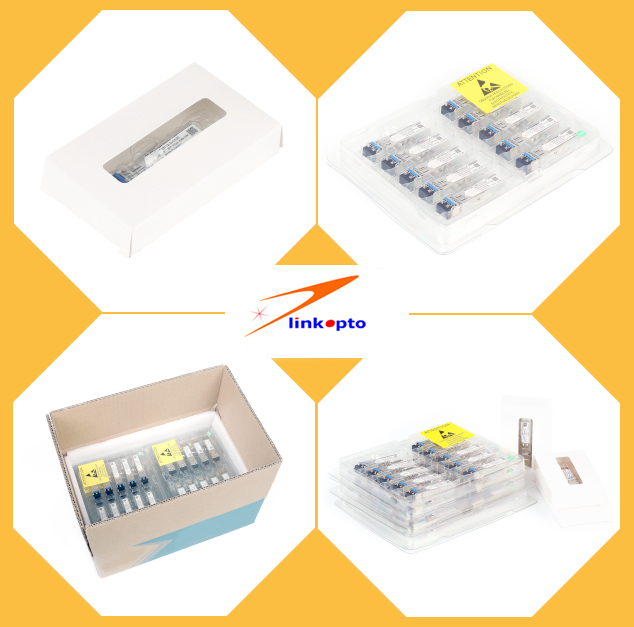

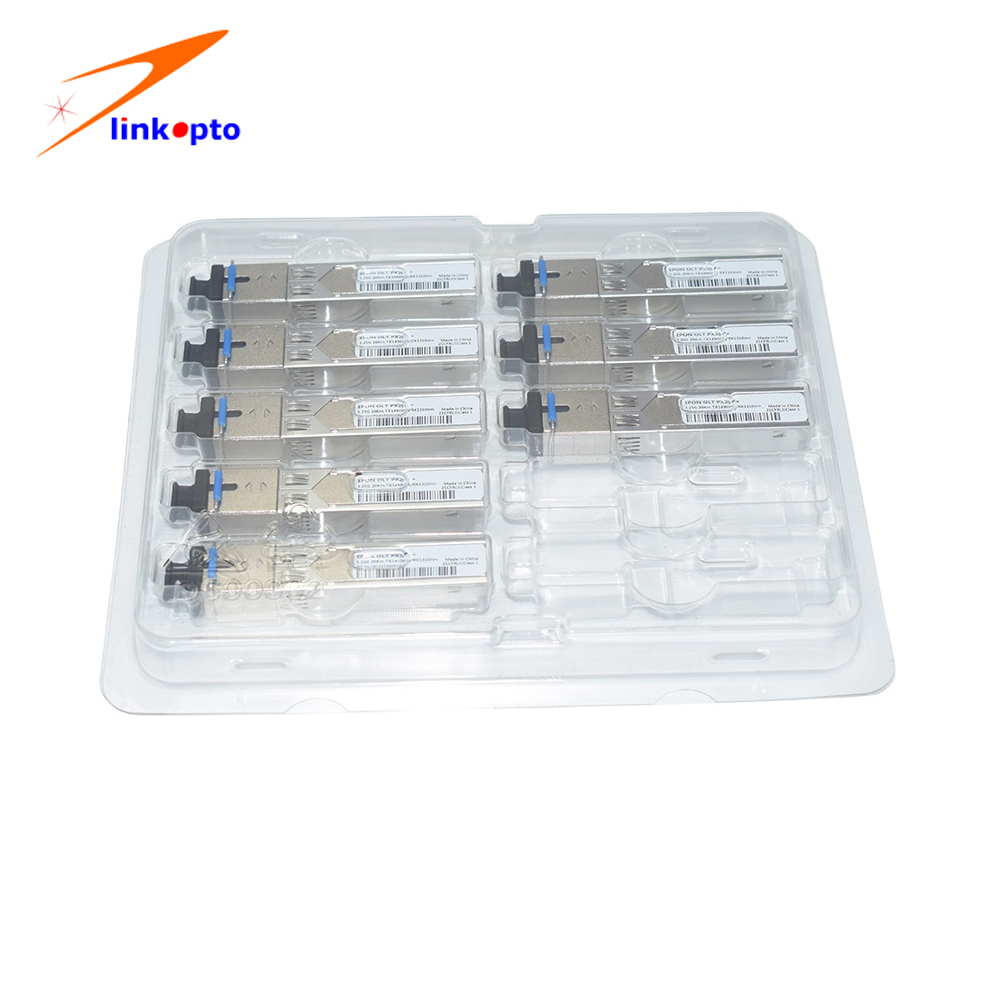

LINKOPTO Package

20Km EPON OLT PX20++ Gigabit SFP Module TX1490 RX1310nm
