EPON OLT PX20 SFP Transceiver Module Tx1490nm/Rx1310nm

Product Categories
Shenzhen linkopto Technology Co. Ltd
Contact Now

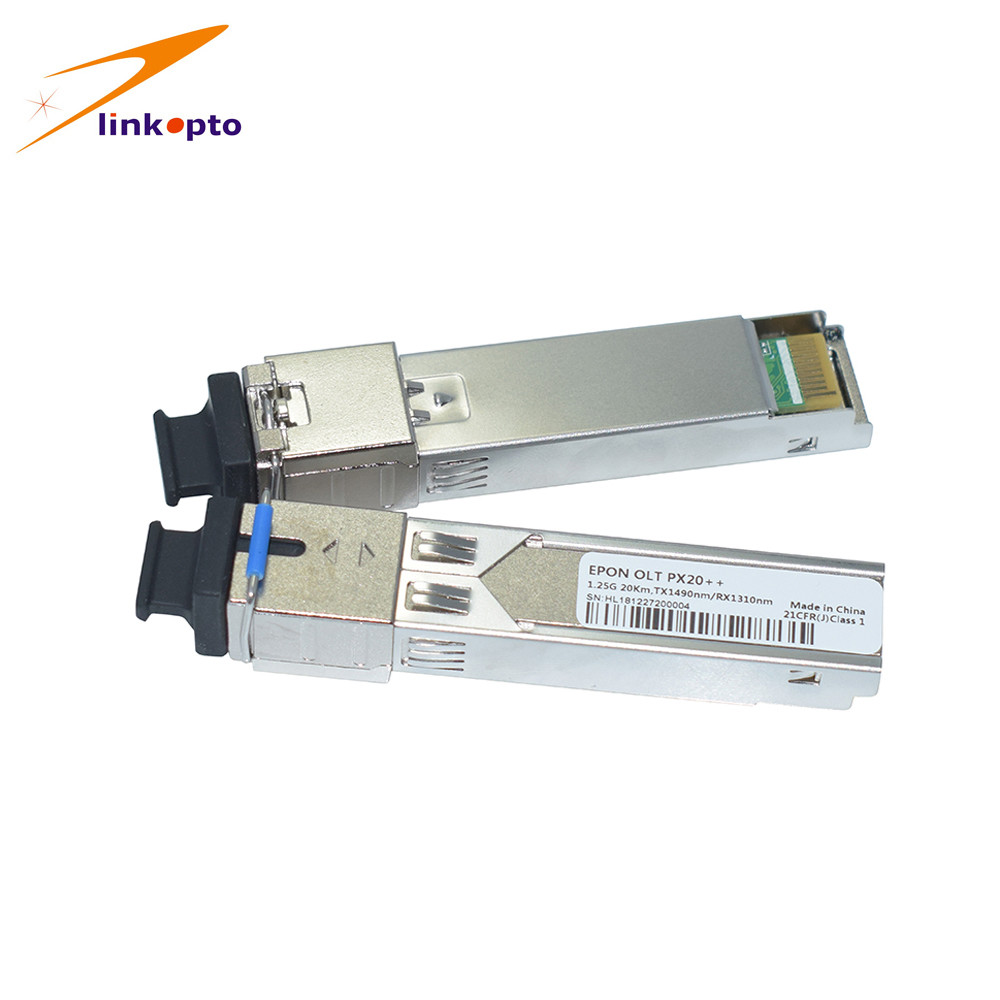

EPON OLT PX20 SFP Transceiver Module Tx1490nm/Rx1310nm

  • 1
  • 2
  • 3

Brand Name : Linkopto , or OEM

Model Number : OLT SFP epon

Certification : CE, FCC, ROHS, TUV, ISO9001

Place of Origin : China

MOQ : 1pcs

Price : Get latest price

Payment Terms : T/T, WU, PayPal, Moneygram, L/C

Supply Ability : 20,000pcs per week

Delivery Time : 3~7 working days

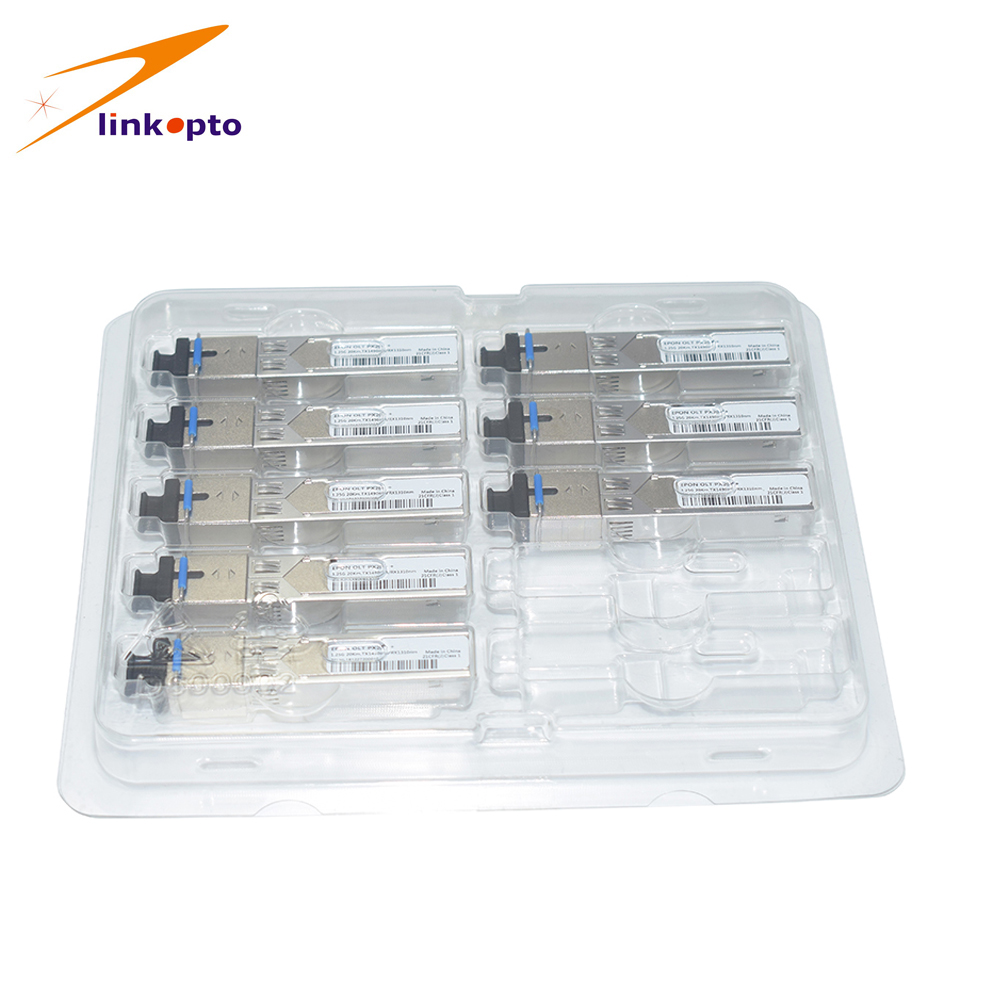

Packaging Details : 10pcs/ plastic tray or individual

Product Name : EPON OLT SFP PX20

Model Name : OLT SFP C++ SFP

Wavelength : T1490 /R1310 nm

Data Rate : 1.25G

Transmission Distance : 20KM

Connector Type : SC

DDM : with

Working Environment : Commercial 0~70℃

Compatibility : Cisco, HP, H3C, Alcatel-Lucent, MikroTik, Juniper, Huawei, ZTE, Zyxel, etc

Contact Now

EPON Olt SFP PX20+

Linkopto EPON OLT Transceiver module is designed for Gigabit Ethernet Passive Optical Network(EPON)20km transmission. The module incorporates 1490nm continuous-mode transmitter and 1310nm burst-mode receiver.

The transmitter section uses a 1490nm DFB laser and a integrated laser driver which is designed to be class1 eye safe under any single fault. The laser driver includes APC and temperature compensation circuit, which are used for keeping the launch optical power and extinction ratio constant over temperature and aging. The receiver section uses an integrated APD and BM-preamplifier mounted together. The burst-mode receiver is resetless and wide dynamic range over 20dB can be obtained under whole operating conditions. The module has the function that indicates receiver signal-detected status (active high).

An integrated WDM coupler can separate 1490nm output light and 1310nm input light.

Specification

1. Dual data-rate of 1.25Gbps/1.063Gbps operation
2. 1310nm FP laser and PIN photodetector for 10/20/40km transmission
3. Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
4. Digital Diagnostic Monitoring:
5. Internal Calibration or External Calibration
6. Compatible with SONET OC-24-LR-1
7. Operating case temperature: Standard: 0 to +70°C, Industrial: -40 to +85°C
8. Compatible with RoHS
9. +3.3V single power supply

Feature
1. Compatible IEEE 802.3ah 1000BASE-PX20 GEPON application
2. Applied to EPON OLT for a Single Fiber Bi-directional EPON System
3. SFP, Single SC connector, Digital Diagnostic Interface Compliant with SFF-8472
4. Burst Digital Receiving Signal Strength Indication (RSSI)
5. Single 3.3V power supply
6. Operation case temperature 0~70°C
7. RoHS-6 compliance

EPON OLT PX20 SFP Transceiver Module Tx1490nm/Rx1310nmEPON OLT PX20 SFP Transceiver Module Tx1490nm/Rx1310nmEPON OLT PX20 SFP Transceiver Module Tx1490nm/Rx1310nmEPON OLT PX20 SFP Transceiver Module Tx1490nm/Rx1310nm
